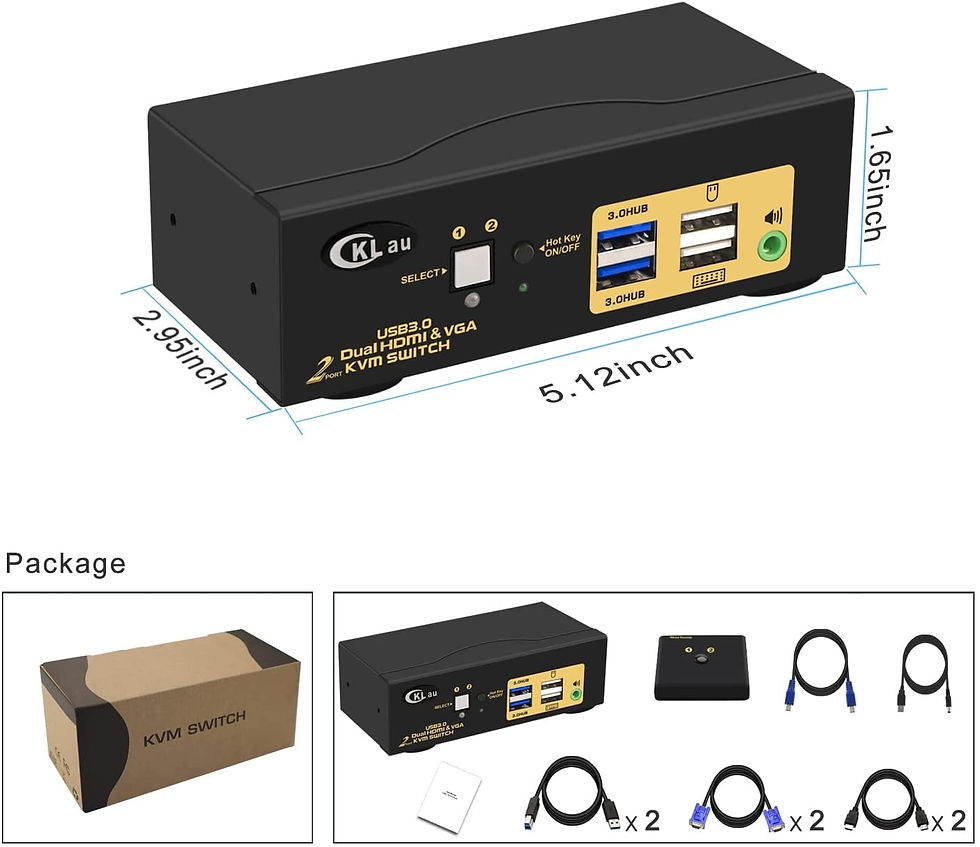

2 Port USB 3.0 HDMI + VGA Dual Monitor KVM Switch

Connector Type       HDMI +VGA

Switch Type              KVM Switch

Material                     Metal

Circuit Type              4-way

Mounting Type         Surface Mount,                                                   Wall Mount

Actuator Type           Push Button

Controller Type         Push Button, Android

 In Stock

  • 2 HDMI+VGA computers/laptops sharing one set of keyboard, mouse, 2 monitors, and 2 USB 3.0 peripheral devices. With 2 USB 3.0 HUB, the data transferring rate is up to 5Gbps/s (10 times faster than USB 2.0). Support wireless keyboard and mouse, Apple keyboard (hotkey is changeable), touch screen, OLED screen, widescreen, etc.

  • Compatible HDMI 2.0, HDCP 2.2, HDR 10.  Certified HDMI adopter for over 10 years. Excellent image processing and transmission capacity, make the output signal more smoothly and steady.

  • Four switching way optional: Hotkey switching(Num Lock + Num Lock + 1 / 2 + Enter, or Ctrl + Ctrl + 1 / 2 + Enter, or Scroll Lock+ Scroll Lock+1 / 2 + Enter), mouse switching(click mouse wheel 2 times), manual button switching, wired remote push button switching.

  • HDMI monitor compatible 4096x2160@ 60Hz, 3840x2160@60Hz and1080P. VGA monitor max resolution 2048x1536@60HZ, compatible lower resolution. Drive-free for Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspbian, Ubuntu, etc.

  • Support Three Display Modes: extended display, mirror display, and video wall display. It can switch by mouse or keyboard independently, even without USB signal input, such as Apple TV, Android TV box, etc. And it can enter into the BIOS interface directly.
